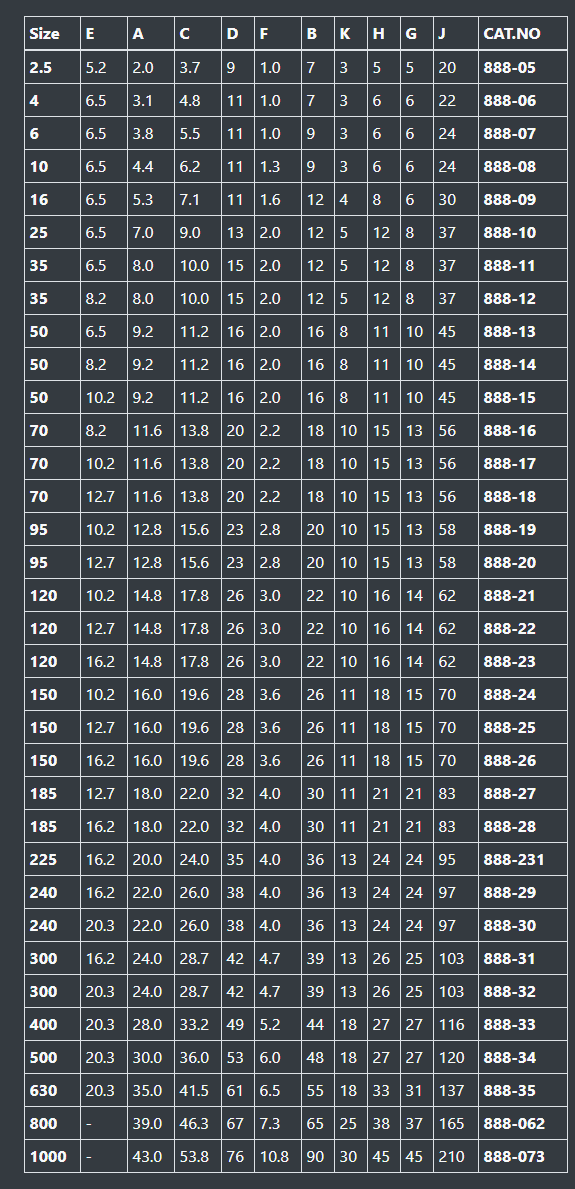

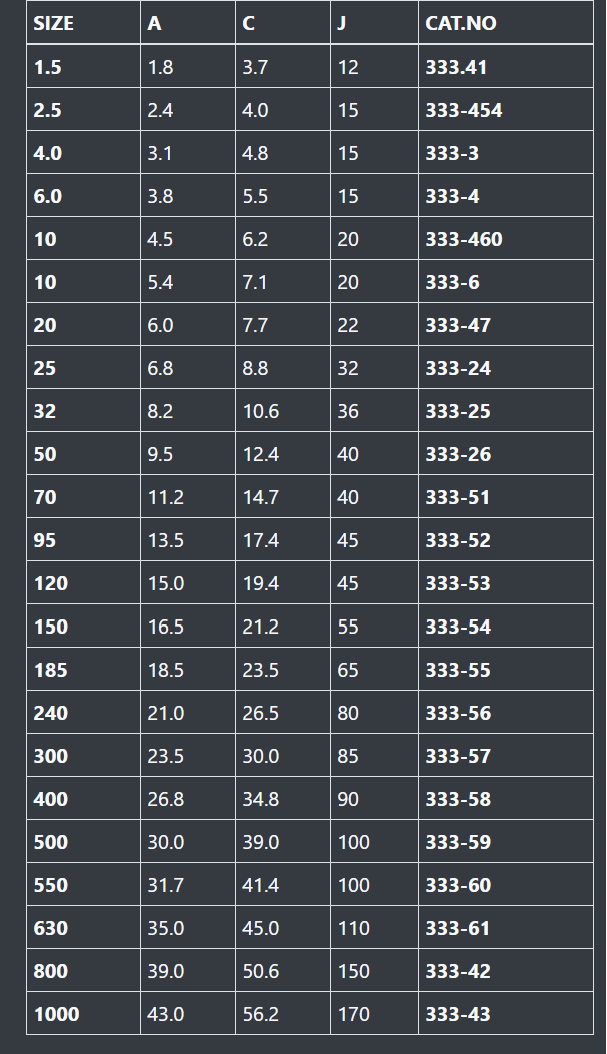

CRIMPING TYPE COPPER TERMINAL ENDS
MATERIAL : SEMLESS COPPER TUBES TO BS1977/I.S ,191, RATING:11 K.V SPECIFICATION:Material:copper :Upto 10-33 kv, Finish:Electro-tinned (BS1872) Design:Light Duty
CRIMPING TYPE HEAVY DUTY COPPER TERMINAL
MATERIAL : SEMLESS COPPER TUBES Material:Copper Reating:Up to 10-38 kv, Finish:Electro-tinned (BS1872) RATING: 11 K.V Finish:BRIGHT ELECTRO TINNED TO BS 1872
CRIMPING TYPE HEVAY DUTY COPPER TERMINAL ENDS with inspection slot (for XLPE CABLES)

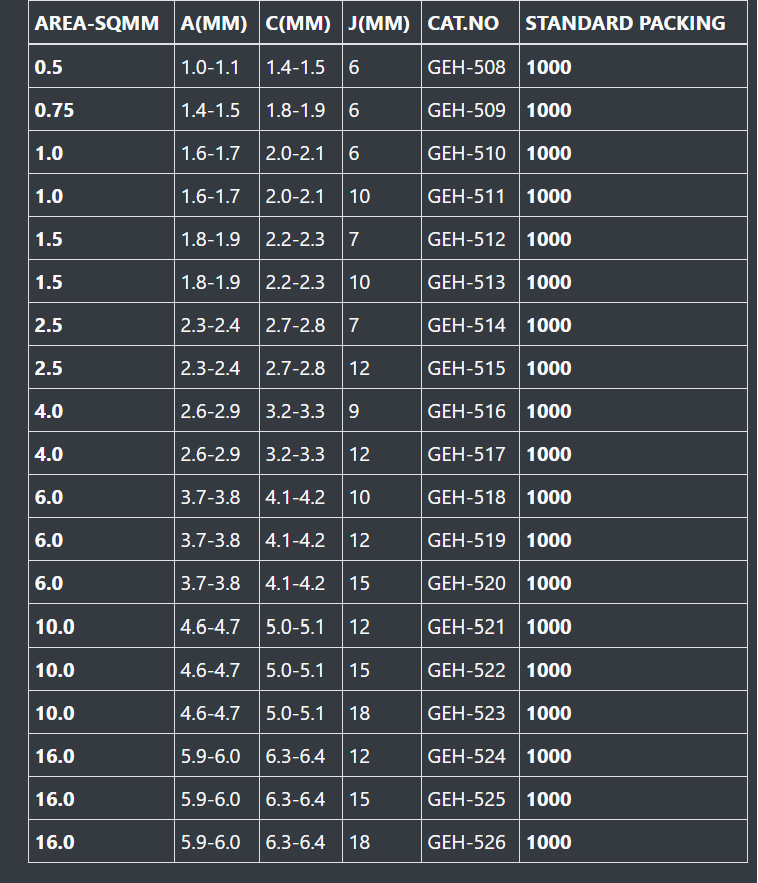

Copper End.Sealing.Ferrules.As per (DIN-46228)
Hevay Duty Copper In-Line Connector RATING : 33 KV

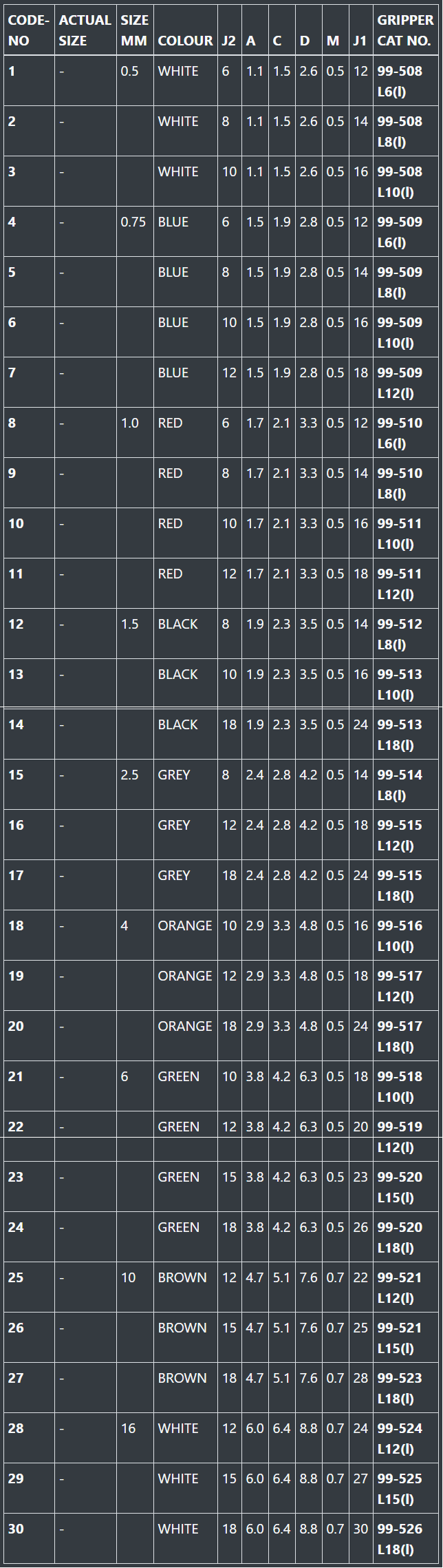

GRIPPERS TM INSULATED FERRULES
CRIMPING TYPE COPPER 4-HOLE TERMINAL ENDS
MATERIAL: SEAMLESS COPPER TUBES, RATING:33 K.V FINISH:BRIGHT ELETRO TINNED TO BS 1872

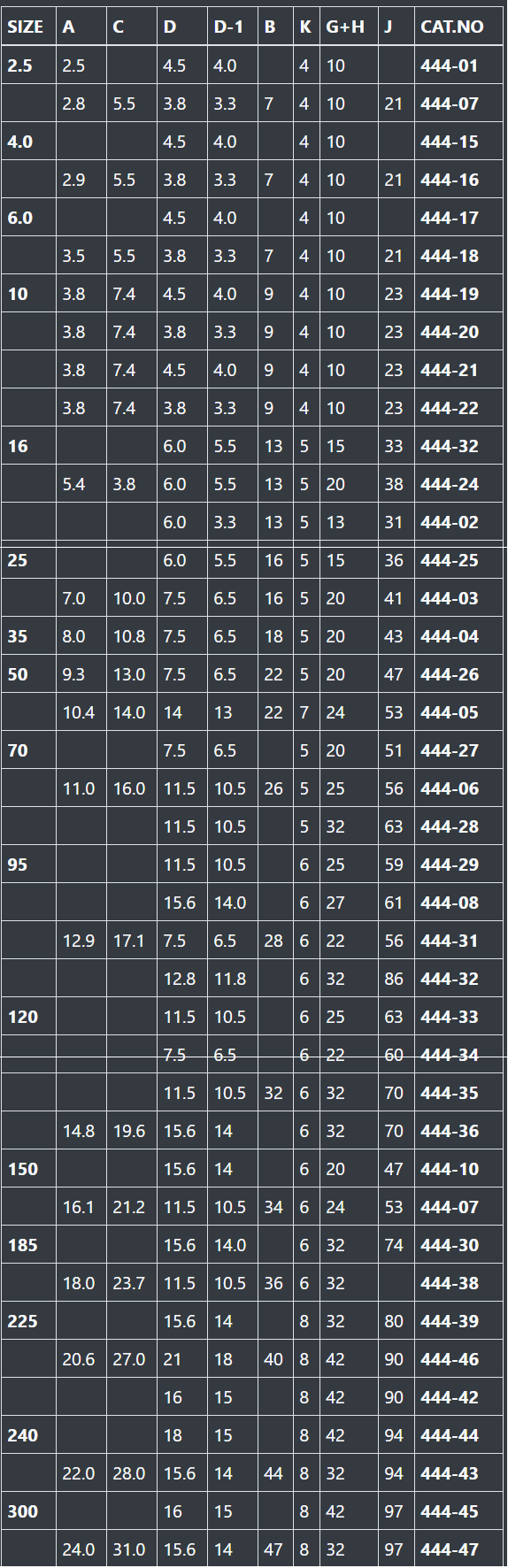

CRIMPING TYPE ALUMINIUM TERMINALS FOR ALUMINIUM CONDUCTORS
MATERIAL: ALUMINIUM TUBES TO IS 5082-1982 SPECIFICATION: ELECTROLYTIC HIGH CONDUCTIVITY GRADE 60% , I.A.C.S FINISH : NATURAL ALUMINIUM TOLERANCES: ON B,H G & J =5% (+-), ON A, C, & F AS PER TAB LE 2 & 3 OF I.S/2678/1972
CRIMPING TYPE COPPER REDUCER TERMINAL FOR ALUMINIUM CONDUTORS
MAYERIAL : COPPER TOD FINISH: BRIGHT ELECTRO TINNED TO BS 1872

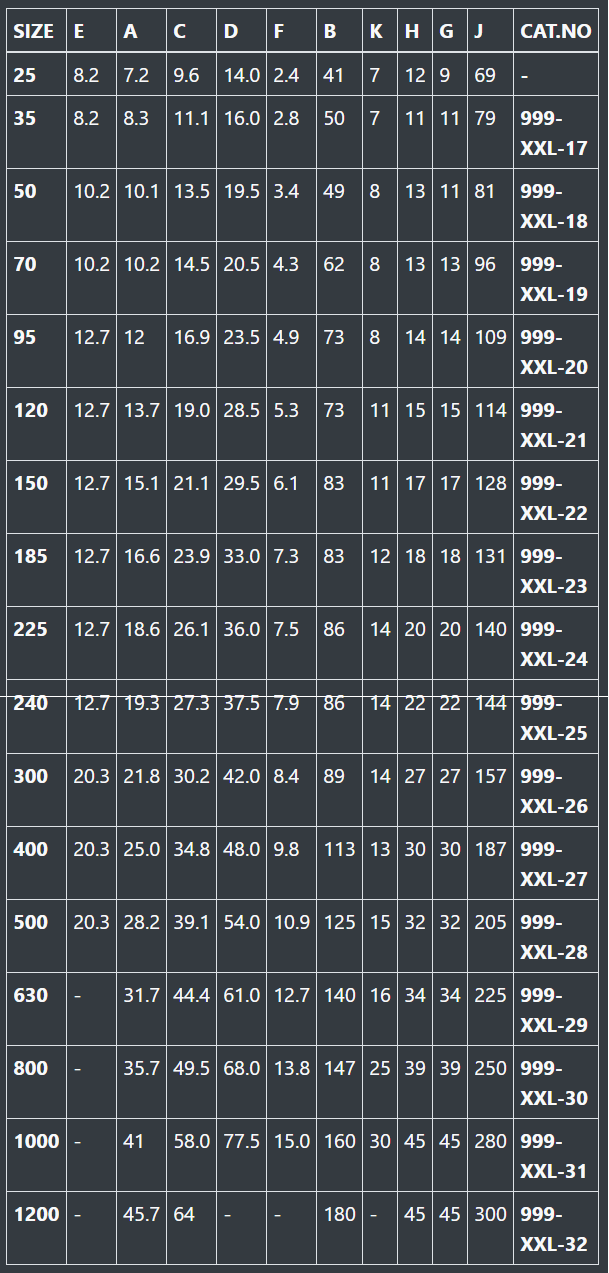

CRIPING TYPE HEAVY DUTY KONG BARREL ALUMINIUM TERMINAL FOR - XLPE CABLE
MATERIAL: ALUMINIUM TUBES TO IS 5082-1982 SPECIFICATION: ELECTROLYTIC HIGH CONDUCTIVITY GRADE 60% , I.A.C.S FINISH : NATURAL ALUMINIUM TOLERANCES: ON B,H G & J =5% (+-), ON A, C, & F AS PER TAB LE 2 & 3 OF I.S/2678/1972 RATING : 33 K.V SPECIAL FEATURE:Can be supplied with pre- filled oxide inhibiying compound on customer request.

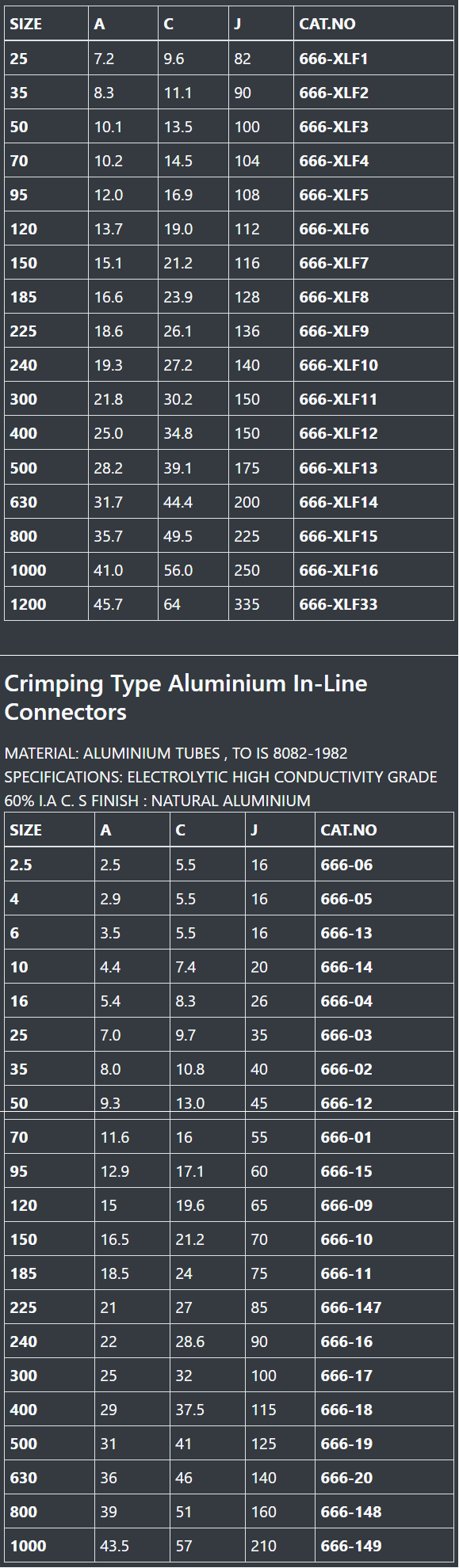

Crimping type Heavy Duty Long Barrel Aluminium In-Line Farriles for XLPE Cables
Special Future : Capped at both ends, can be supplies eith Pre-Filled oxide inhibiting Compound on Cusomer Request
MATERIAL: ALUMINIUM TUBES , TO IS 5082-1982 SPECIFICATIONS: ELECTROLYTIC HIGH CONDUCTIVITY GRADE 60% I.A C. S FINISH : NATURAL ALUMINIUM TOLERANCES: ON B,H,G & J =(+-) 5% ON A, C & F = AS PER TABLE 2 & 3 OF IS/2678/1972 RATING : 33 K.V
Crimping Type Aluminium Reducer Type Terminal Ends.
MATERIAL: ALUMINIUM TUBES , TO IS 5082-1982 SPECIFICATIONS: ELECTROLYTIC HIGH CONDUCTIVITY GRADE 60% I.A.C.S FINISH : NATURAL ALUMINIUM TOLERANCES: ON B,H,G & J =(+-) 5%, ON A,C & F = AS PER TABLE 2 & 3 OF I.S/2678/1972

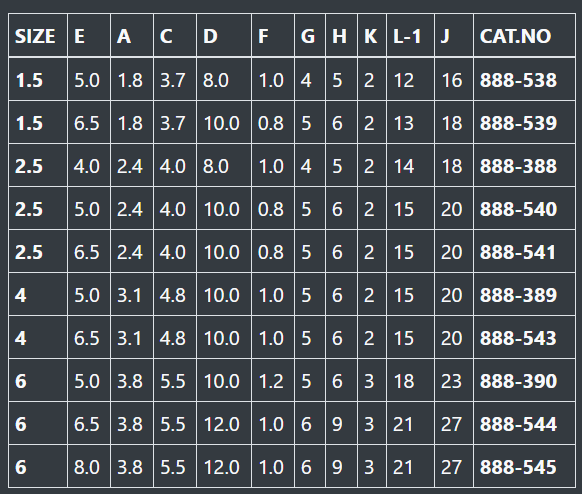

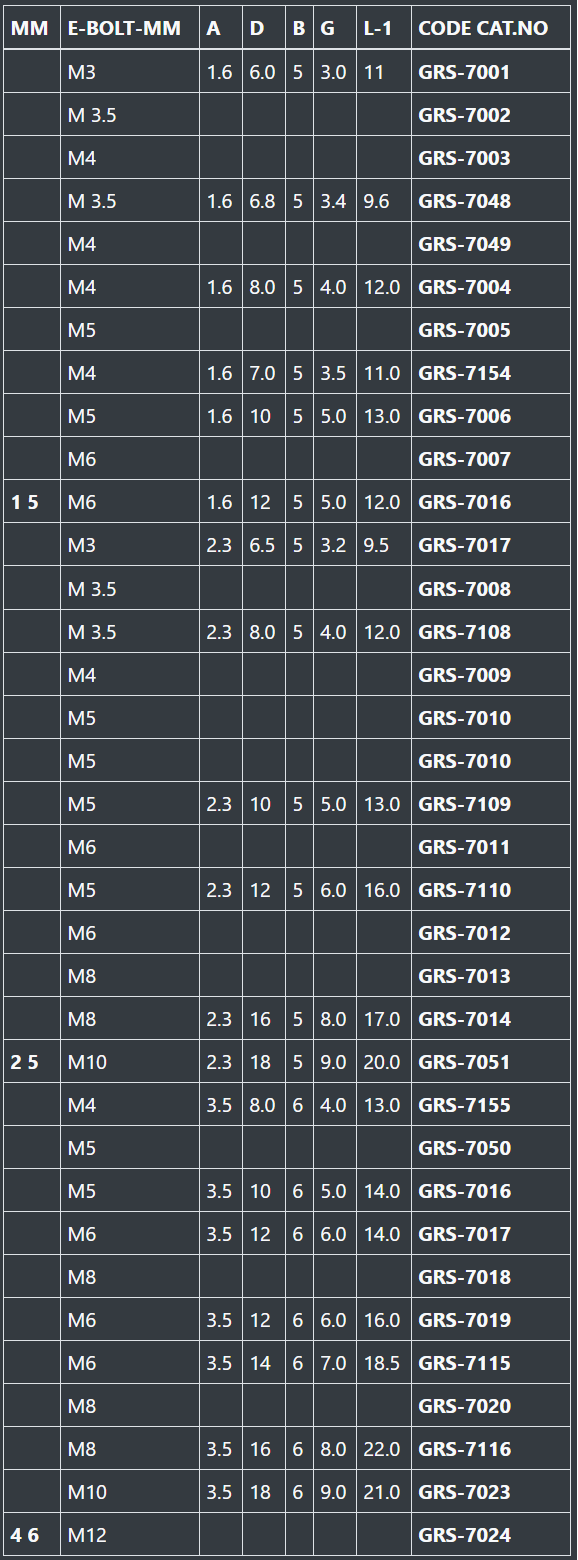

RING TERMINALS NON. INSULATED
RING TERMINALS NON. INSULATED
New Development Tabular Cable Lug Bellmount
EASY ENTRY TYPE MATERIAL : E-copper Surface : Tin plated with inspection hole MATERIAL: SEAMLESS COPPER PIPE RATING : 11-33 K.V, MATERIAL: COPPER FINISH: ELECTRO-TINNED (BS1872)
Tinned Copper through/ Blocked Type High Voltage Copper Connectors
Customer Built Terminals & Connectors are Catered
